Setup

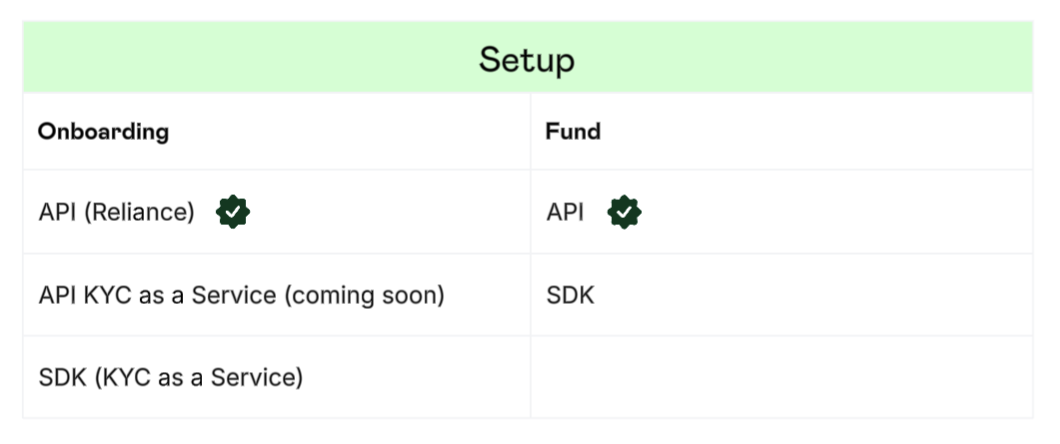

In this guide, the Platform is setup to use the Onboarding API (Reliance) plus the Fund API.

Flow

In this example, the Platform is configured to have the converted USD be automatically transferred to the Platform's account. We'll also assume that this is an investment platform that allows "issuers" to source investments from End Customers. Summary of all involved participants:

Platform (participant_code: PLAT01)
End Customer (participant_code: CUST01)
Issuer 1 (participant_code: ISSUR1)

Webhook configuration

Talk to your Zero Hash representative to have your Platform configured for the following webhooks:

Onboarding
Fund

Submit customer

Example request - POST /participants/customers/new

{
"first_name": "John",
"last_name": "Smith",
"email": "[email protected]",
"phone_number": "9545551234",
"address_one": "1 Main St.",
"address_two": "Suite 1000",
"city": "Chicago",
"state": "IL",
"zip": "12345",
"country": "United States",
"date_of_birth": "1985-09-02",
"citizenship": "United States",
"tax_id": "123456789",
"risk_rating": "low",
"kyc": "pass",
"kyc_timestamp": 1630623005000,
"sanction_screening": "pass",
"sanction_screening_timestamp": 1630623005000,
"idv": "pass",
"liveness_check": "pass",
"signed_timestamp": 1630623005000,
"metadata": {},
"signed_agreements": [
     {
        "type": "fund_auto_convert",
        "region": "us",
        "signed_timestamp": 1712008721000
     }
 ]
}

If you fail to indicate that the end customer has agreed to the fund-specific terms, in the signed_agreements object shown above, /fund API calls will fail.

There may be situations where the Platform is restricted from submitting Customers who reside in certain jurisdictions (ie, New York). The Platform will receive an error that looks like:

{
    "errors": [
        "The submitting platform is not allowed to operate in the participant's resident state",
        "participant is not in an allowed jurisdiction"
    ]
}

The preferred approach is for the Platform to not allow Customers to onboard on their side (through a feature flag, for example). However, if a request with a Customer in a blocked jurisdiction does get submitted to Zero Hash via API, the Platform should fail gracefully and display a descriptive error message on-screen.

Get quote - POST /fund/rfq

Example request

{
  "participant_code": "CUST01",
  "fund_asset": "USDC.ETH",
  "account_label": "ISSUR1"
}

Interpretation of this request - the end customer (CUST01) is funding their account using USDC as the asset and ETH as the blockchain network. And to be specific, the end customer is funding the account for the purposes of investing into the issuer 1's company. The platform uses the optional, free-form account_label field for reconciliation and reporting. The entirety of this fund event and related ledger movements will be tied to issuer 1.

Example response - POST /fund/rfq

{
  "message": {
    "request_id": "14f8ebb8-7530-4aa4-bef9-9d73d56313f3",
    "participant_code": "CUST01",
    "fund_asset": "USDC.ETH",
    "rate": "1",
    "quoted_currency": "USD",
    "expiry_timestamp": 2554408627334,
    "deposit_address": "0x5f59B625036ccB4f7aD27Ca4Cb896e4452AfFDAF",
    "minimum_deposit": "1",
    "maximum_deposit": "250000"
  }
}

End customer initiates on-chain deposit

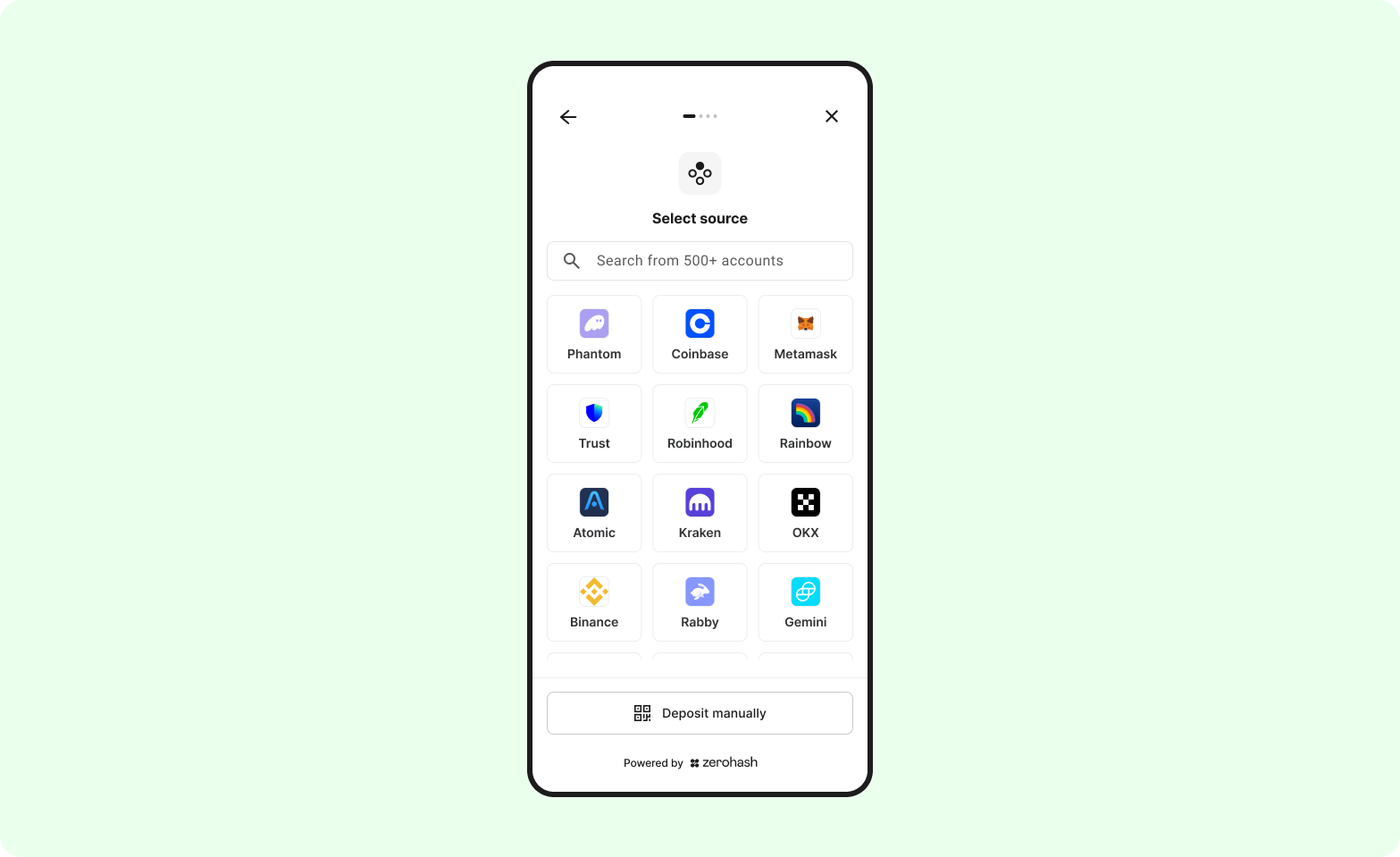

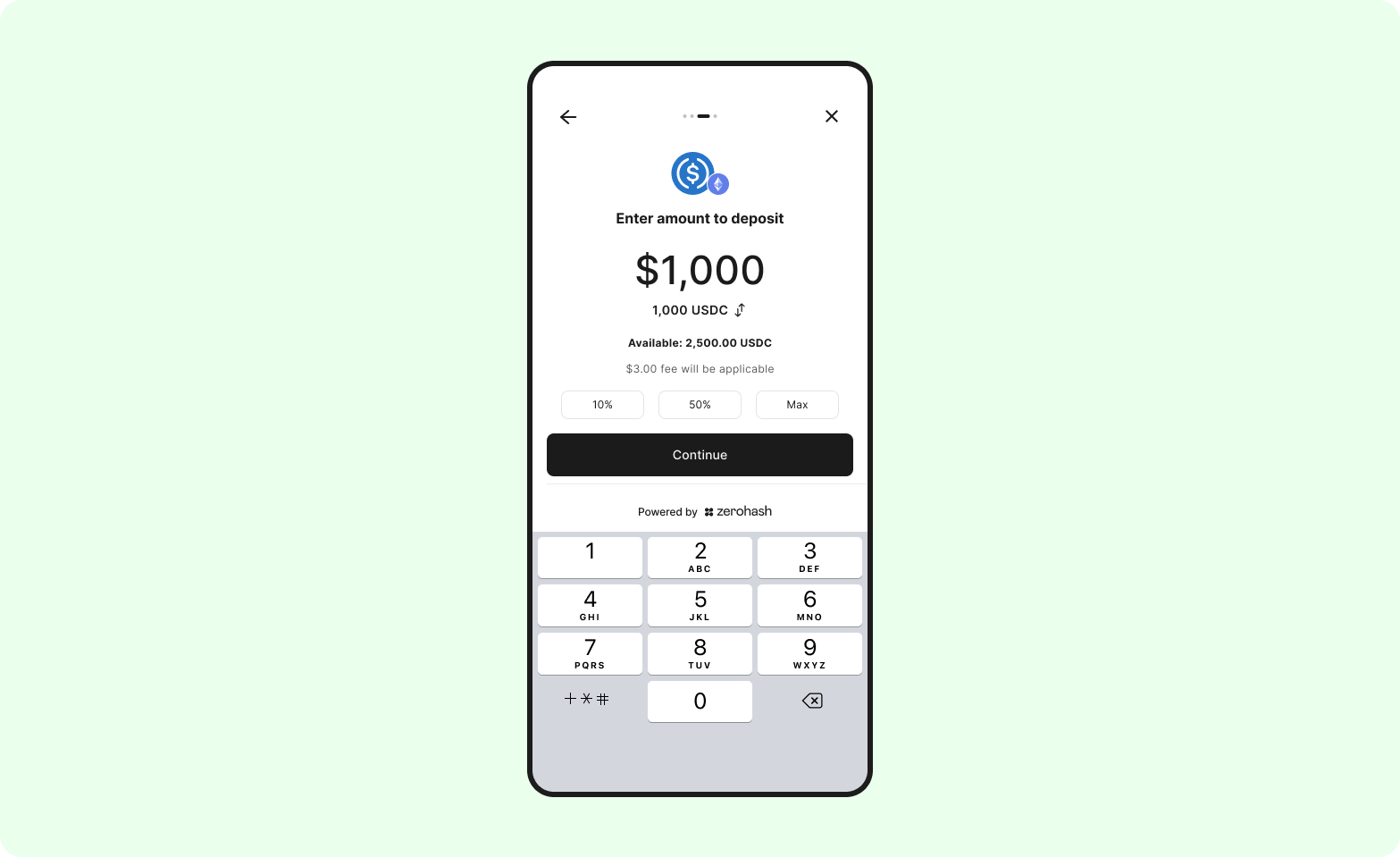

The end customer is presented with an address on the platform's user interface. They use their Metamask wallet, for example, to trigger a withdrawal into the deposit_address for the amount of their choice. Let's say the deposit is for 1,000 USDC.

Deposit received

The transaction has received the proper amount of on-chain confirmations (for USDC in this case, it is 1) and Zero Hash initiates a series of movements:

Accounts for this example:

account_id	account_owner	account_group	account_label	account_type	asset
47a854fa-d0e4-405b-831b-f1a86bbf7988	CUST01	PLAT01	ISSUR1	available	USDC.ETH
52c29f2d-8298-4e8c-84bc-7773960bee12	CUST01	PLAT01	ISSUR1	available	USD

Deposit: Using our account nomenclature, the movement would appear as:

account_owner	account_group	account_label	account_type	movement_type	asset	change
CUST01	PLAT01	ISSUR1	available	deposit	USDC.ETH	+1,000

Conversion: Automatically, Zero Hash will convert the USDC to USD. This technically creates a trade, which has a movement_type of final_settlement:

account_owner	account_group	account_label	account_type	movement_type	asset	change
CUST01	PLAT01	ISSUR1	available	final_settlement	USDC.ETH	-1,000
CUST01	PLAT01	ISSUR1	available	final_settlement	USD	+1,000

Transfer: Automatically, Zero Hash will transfer the USD from the end customer account to the platform's:

account_owner	account_group	account_label	account_type	movement_type	asset	change
CUST01	PLAT01	ISSUR1	available	transfer	USD	-1,000
PLAT01	PLAT01	ISSUR1	available	transfer	USD	+1,000

Webhook event triggered

The platform can subscribe to a newly built webhook event for this product. It will be triggered at the completion of step 3 above (or step 2 if you are not configured for a subsequent transfer). For more information on webhook messages for Fund, check out webhook documentation.

Platform queries REST fund endpoint

The platform can also retroactively query the GET /fund/transactions endpoint to view details of all particular fund event. View the code recipe for additional assistance.

Example response - GET /fund/transactions

{
  "message": [
    {
      "participant_code": "CUST01",
      "fund_asset": "USDC.ETH",
      "rate": "1",
      "quoted_currency": "USD",
      "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
      "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
      "quantity": "1000",
      "notional": "1000",
      "success": true,
      "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
      "is_first_deposit": true,
      "fund_timestamp": 1727380576846,
      "deposit_timestamp": 1727380579415,
      "transaction_id": "0x72e399164e29bada83075cd44eacfc40c1656bc35bf38f0cf661bf00dfa3b2b2",
      "account_label": "ISSUR1",
      "raw_fee_bps": "50",
      "actual_fee_bps": "1000",
      "raw_fee_notional": "0.05",
      "actual_fee_notional": "1",
      "deposited_asset": "USDC"
    }
  ],
  "page": 1,
  "page_size": 50,
  "total_pages": 1
}

Platform settlement - platform initiates a withdrawal request

The platform can then withdraw the USD using the POST /withdrawals/requests endpoint.

Example Request - POST /withdrawals/requests

{
  "withdrawal_account_id":"abc12",
  "participant_code":"PLAT01",
  "amount":"1000",
  "asset":"USD",
  "account_group":"PLAT01"
}

Reconciliation - platform queries REST movements endpoint

The platform can now query GET /movements?parent_link_id=5155f7c9-95cb-4556-ab89-c178943a7111 in order to view all related ledger movements to this fund event.

Example response - GET /movements?parent_link_id=

{
  "message": [
    {
      "movement_timestamp": 1550174570000,
      "account_id": "47a854fa-d0e4-405b-831b-f1a86bbf7988",
      "movement_id": "5d4d962d-dc37-4ddc-b0c5-b8980d1d4421",
      "movement_type": "deposit",
      "transfer_type": null,
      "deposit_reference_id": null,
      "withdrawal_request_id": null,
      "parent_link_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
      "trade_id": null,
      "change": "1000"
    },
    {
      "movement_timestamp": 1550174571000,
      "account_id": "47a854fa-d0e4-405b-831b-f1a86bbf7988",
      "movement_id": "3d4d962d-dc37-4ddc-b0c5-b8980d1d4422",
      "movement_type": "final_settlement",
      "transfer_type": null,
      "deposit_reference_id": null,
      "withdrawal_request_id": null,
      "parent_link_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
      "trade_id": null,
      "change": "-1000"
    },
    {
      "movement_timestamp": 1550174572000,
      "account_id": "52c29f2d-8298-4e8c-84bc-7773960bee12",
      "movement_id": "80818b7b-92ec-4882-a371-a59fb3f8bce0",
      "movement_type": "final_settlement",
      "transfer_type": null,
      "deposit_reference_id": null,
      "withdrawal_request_id": null,
      "parent_link_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
      "trade_id": null,
      "change": "1000"
    },
    {
      "movement_timestamp": 1550174573000,
      "account_id": "52c29f2d-8298-4e8c-84bc-7773960bee12",
      "movement_id": "80818b7b-92ec-4882-a371-a59fb3f8bce0",
      "movement_type": "transfer",
      "transfer_type": null,
      "deposit_reference_id": null,
      "withdrawal_request_id": null,
      "parent_link_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
      "trade_id": null,
    "change": "-1000"
    },
    {
      "movement_timestamp": 1550174574000,
      "account_id": "77c29f2d-8298-4e8c-84bc-7773960bee10",
      "movement_id": "80818b7b-92ec-4882-a371-a59fb3f8bce0",
      "movement_type": "transfer",
      "transfer_type": null,
      "deposit_reference_id": null,
      "withdrawal_request_id": null,
      "parent_link_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
      "trade_id": null,
      "change": "1000"
    }
  ]
}

Platform settlement

Zero Hash will, one time per day, send a fiat settlement wire to the Platform where the amount represents the sum of all converted deposits from the prior trading session. Here is the settlement schedule:

Session	Start	End	Expected Settlement Time*
Monday	Monday 9:00a EST	Tuesday 8:59:59a EST	Tuesday EOD
Tuesday	Tuesday 9:00a EST	Wednesday 8:59:59a EST	Wednesday EOD
Wednesday	Wednesday 9:00a EST	Thursday 8:59:59a EST	Thursday EOD
Thursday	Thursday 9:00a EST	Friday 8:59:59a EST	Friday EOD
Friday	Friday 9:00a EST	Monday 8:59:59a EST	Monday EOD

During US holidays, Platforms should expect their settlements to arrive by EOD on the next business day. For example, for the August 30th 2024 session, the settlement will arrive by Tuesday EOD (because Monday was Labor Day)

Tracking the settlement amount

The recommended way to track the impending settlement amount is to query the GET /accounts/{account_id} endpoint. In order to retrieve the correct account_id to use in that call, use the following query parameters when hitting the GET /accounts endpoint:

participant_code: [your platform code]
account_group: [your platform code]
account_label: general
account_type: available
asset: [fiat currency code, typically "USD"]

Use the account_id in the response, ie af063ca6-836f-4677-8ebf-edbe1d049938, to query GET /accounts/af063ca6-836f-4677-8ebf-edbe1d049938. Example response:

{
    "message": [
        {
            "asset": "USD"
            "account_owner": "PLAT01",
            "account_type": "available",
            "account_group": "PLAT01",
            "account_label": "general",
            "balance": "25000",
            "account_id": "af063ca6-836f-4677-8ebf-edbe1d049938",
            "last_update": 1727214271011
        }
    ]
}

Retroactively querying settlements in the past

Platform settlements are technically a withdrawal. In order to query settlements from the past, use the GET /withdrawals/requests endpoint. The response will show all withdrawals made from the Platform's account, or one of your Customer's (Customer withdrawals are extremely rare and reserved for edge case Fund failures only).

In order to filter for withdrawals made from the Platform account only, query GET /withdrawals/requests using the participant_code query parameter, where the value is the Platform's platform code:

Example GET /withdrawals/requests?participant_code=PLAT01 response:

{
    "message": [
        {
            "id": "152b8276-0585-45ec-bf62-85e134b3ff43",
            "withdrawal_account_id": 346030,
            "participant_code": "PLAT01",
            "account_group": "PLAT01",
            "account_label": null,
            "requestor_participant_code": "PLAT01",
            "asset": "USDC.SOL",
            "requested_amount": "25000",
            "settled_amount": "25000",
            "gas_price": null,
            "status": "SETTLED",
            "on_chain_status": "",
            "client_withdrawal_request_id": null,
            "requested_timestamp": 1727921516403,
            "transaction_id": "HND48J83HGR55LLP",
            "input_data": null,
            "fee_amount": "",
            "quoted_fee_amount": null,
            "quoted_fee_notional": null,
            "trade_id": null,
            "quoted_fee_asset": null,
            "withdrawal_fee": "",
            "parent_link_id": null,
            "parent_link_id_source": null
        }
    ]
}
