Fund Integration Guide (Onboarding SDK + Fund SDK)

Suggest Edits

See core product page here

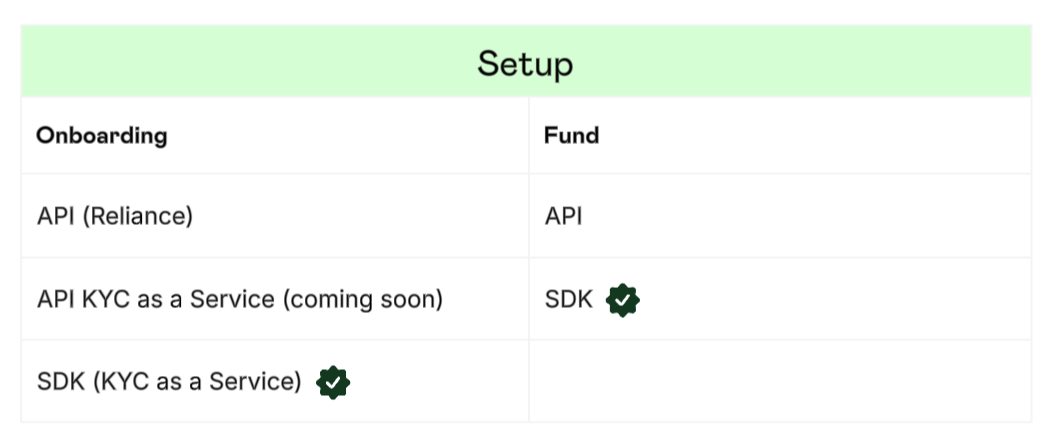

Setup

In this guide, the Platform is setup to use the Onboarding SDK (KYC as a Service) plus the Fund SDK.

Flow

In this example, the Platform is configured to have the converted USD be automatically transferred to the Platform's account. We'll also assume that the Platform is a CFD brokerage offering stablecoins as a funding mechanism. Summary of all involved participants:

  • Platform (participant_code: PLAT01)
  • End Customer (participant_code: CUST01)

Webhook configuration

Talk to your Zero Hash representative to have your Platform configured for the following webhooks:

  • Onboarding
  • Fund

Onboarding

Retrieve Fund JWT token

In order to successfully invoke the Access Token, you'll need to supply a participant_code for the Customer (see full instructions here). Please note that this customer must be in an approved status for this call to succeed. Please note: the correct permission to pass here is participant-profile.

The Customer will then be prompted to fill out their onboarding details.

Receive Webhook event

Once the Customer has successfully completed the onboarding flow, the Platform will receive a series of webhooks, most typically like:

{
  "participant_code": "CUST01",
  "participant_status": "submitted",
  "timestamp": 1670958435349
}

Then a few seconds later, the Customer receives approval:

{
  "participant_code": "ABC123",
  "participant_status": "approved",
  "timestamp": 1670958435375
}

The participant_code should be used in the next SDKf flow:

Fund

Retrieve Fund JWT token

In order to successfully invoke the Access Token, you'll need to supply a participant_code for the Customer (see full instructions here). Please note that this customer must be in an approved status for this call to succeed. Please note: the correct permission to pass here is fwc.

Invoke the Fund SDK

This is the Fund part of the flow, where money actually moves. See SDK guide for technical instructions.

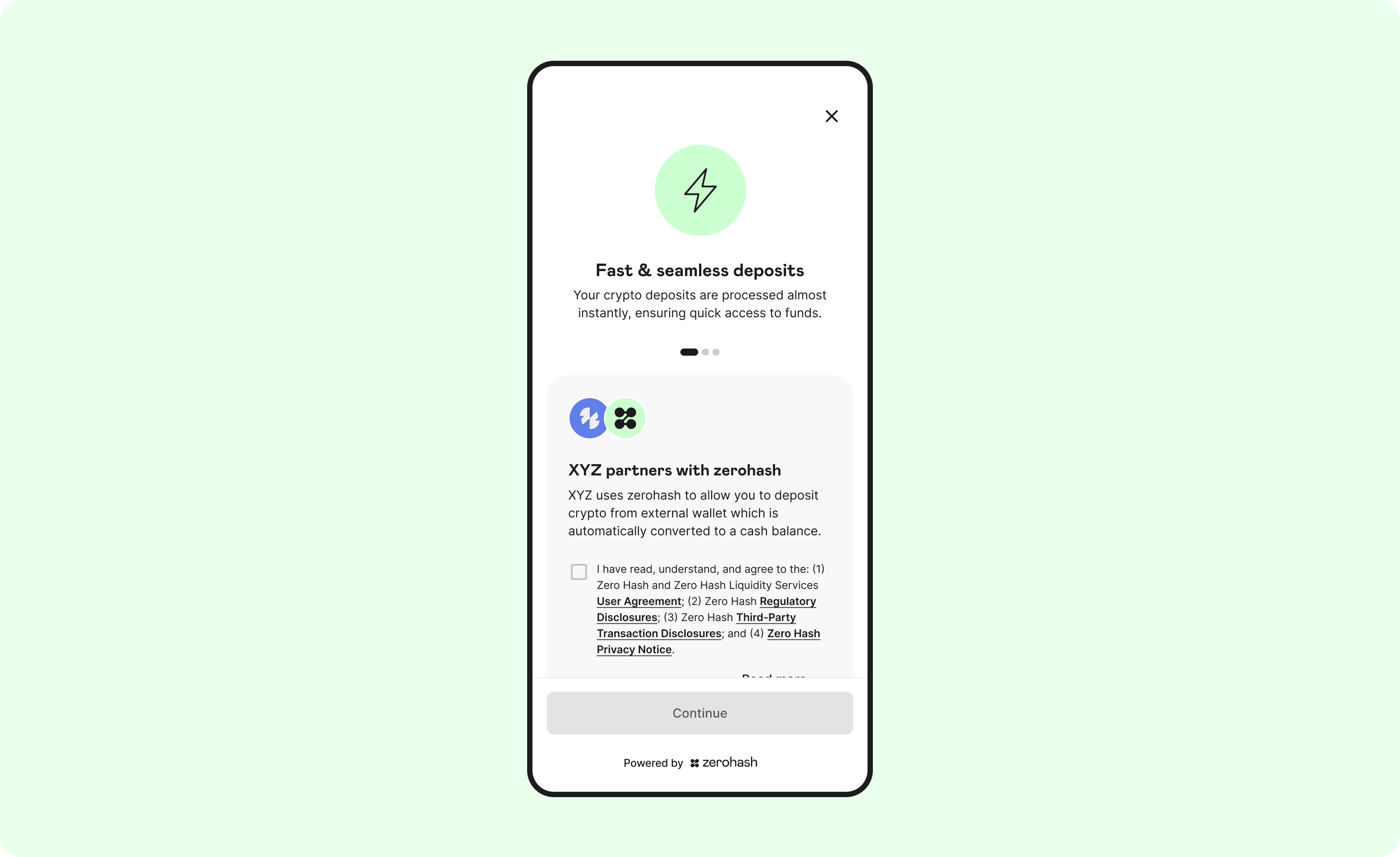

Landing page

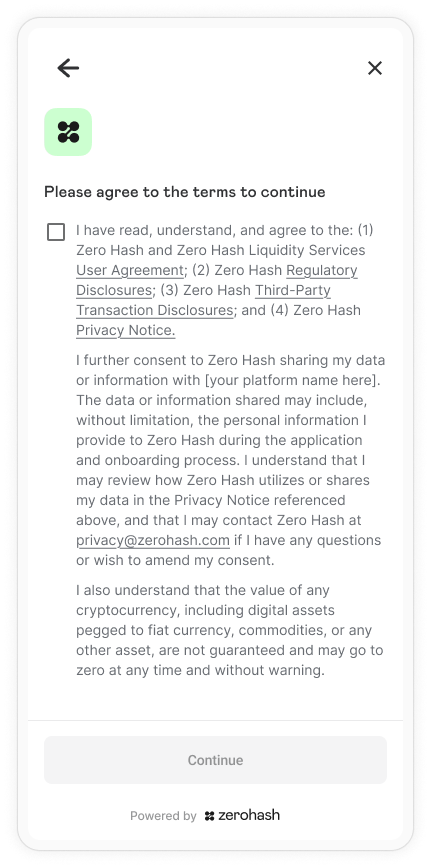

The Landing Page is the first screen that the Customer will see. This screen displays the Zero Hash User Agreement, Privacy Policy, Regulatory Disclosures, and captures explicit consent for the terms of this product:

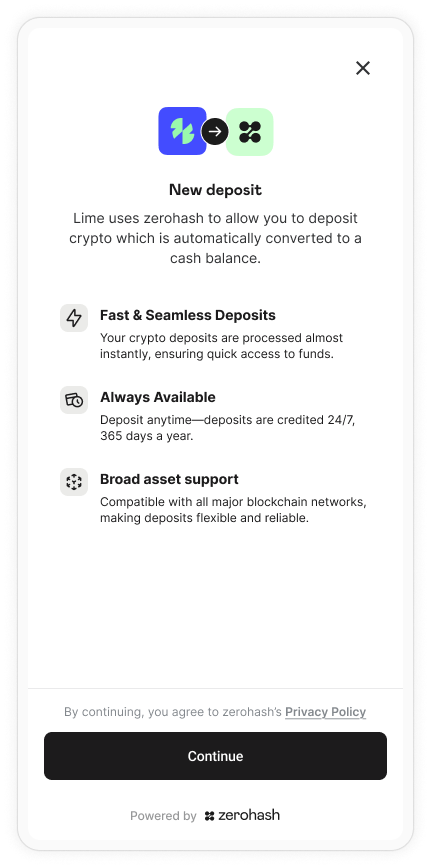

Product introduction

This screen is an introduction to how the Fund experience will work:

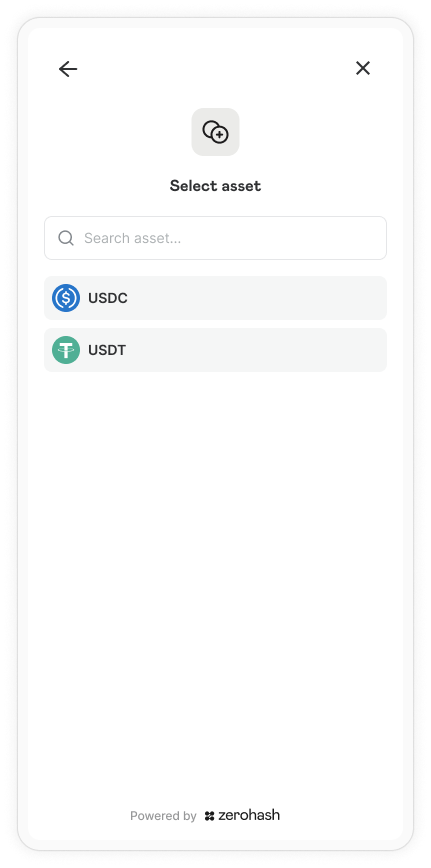

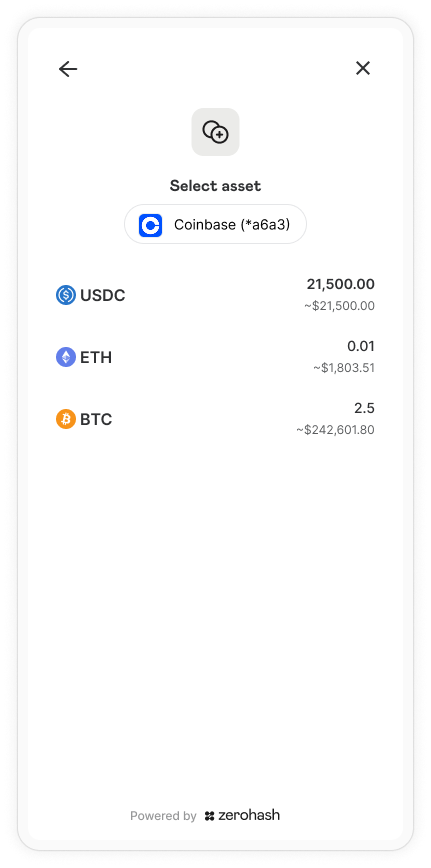

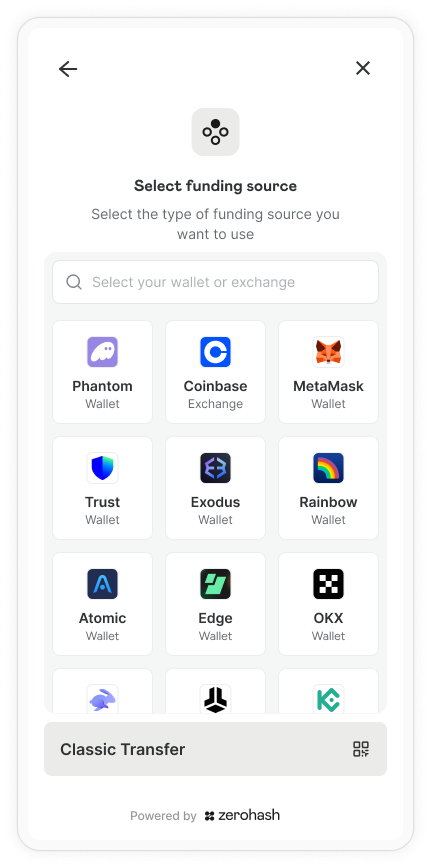

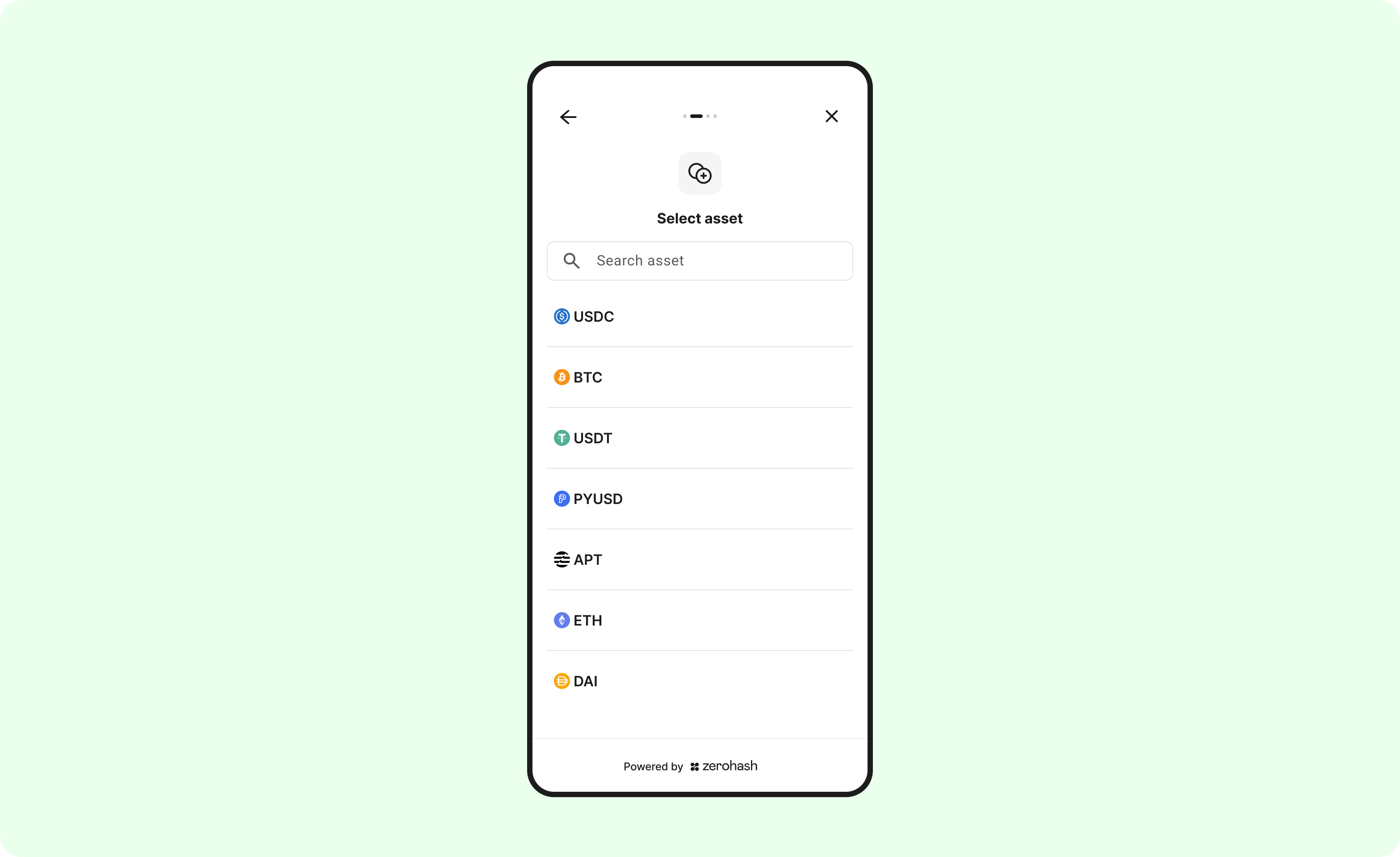

Select an asset and network

Allow the customer to select an asset and network. Zero Hash supports all major stablecoins across 10+ networks:

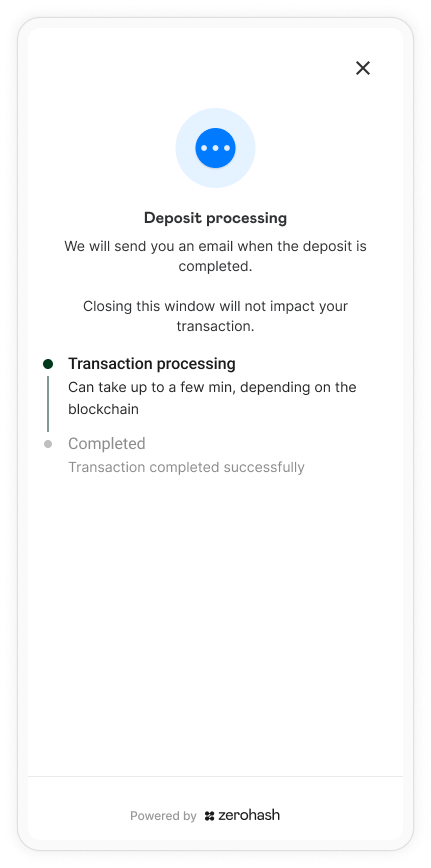

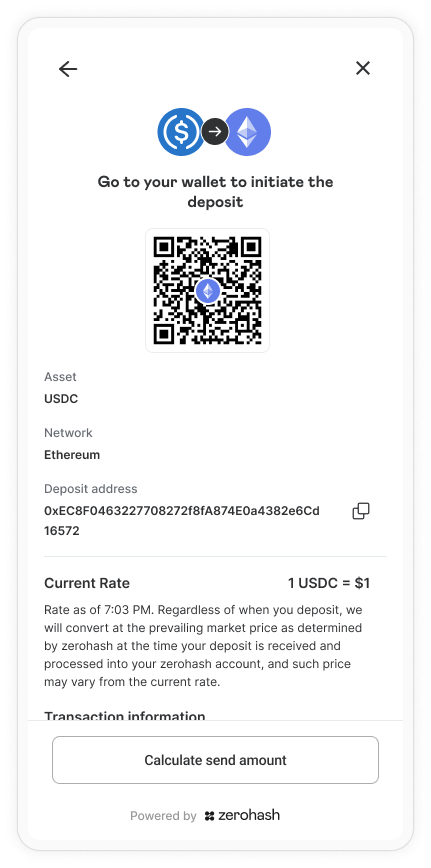

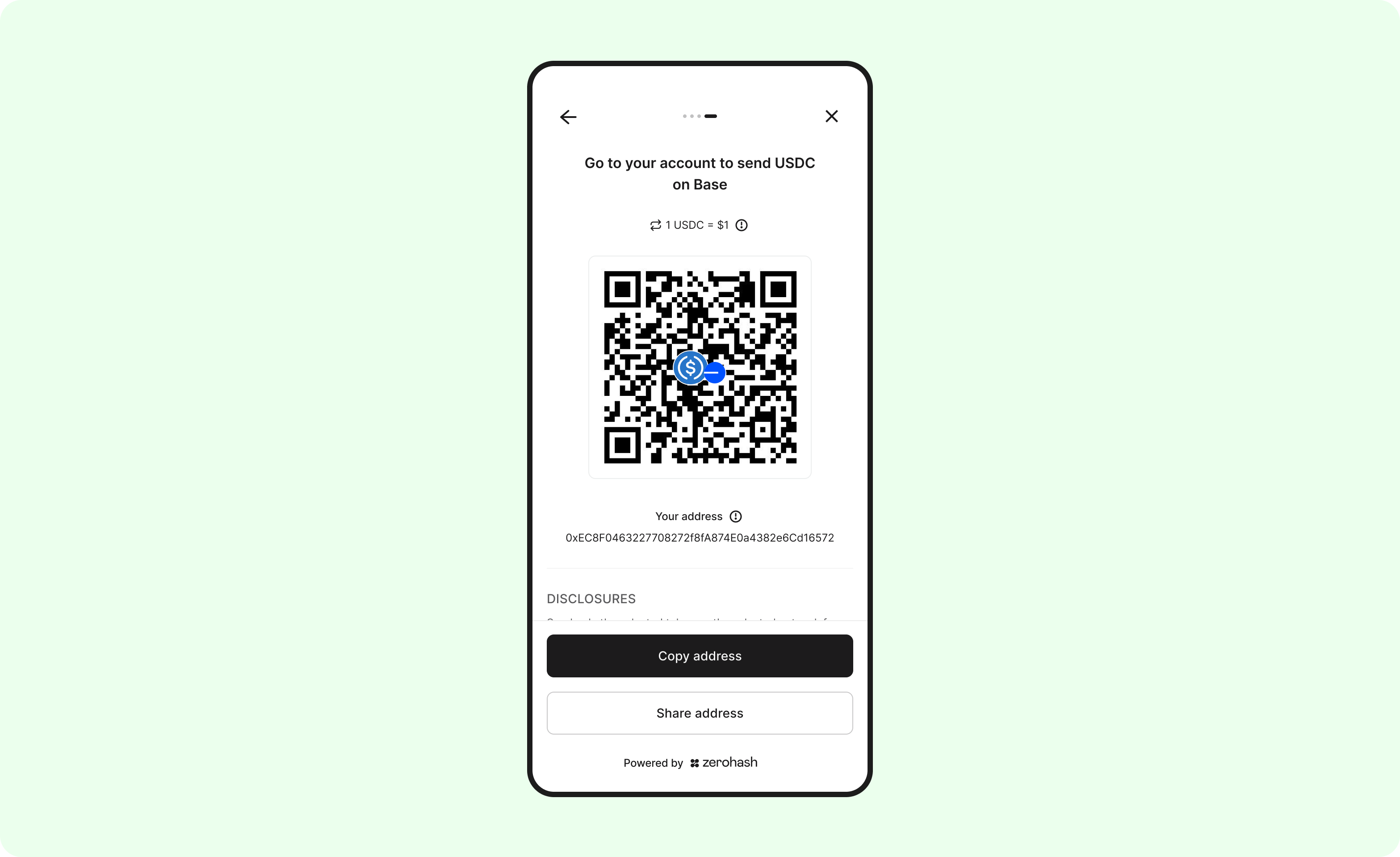

Transaction pending

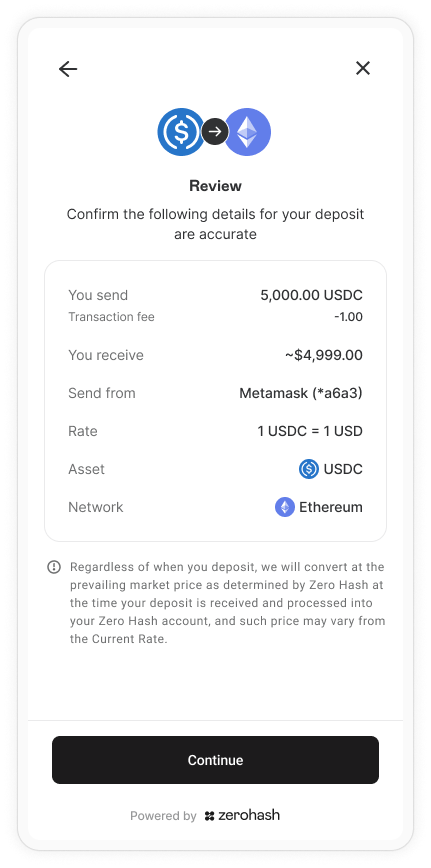

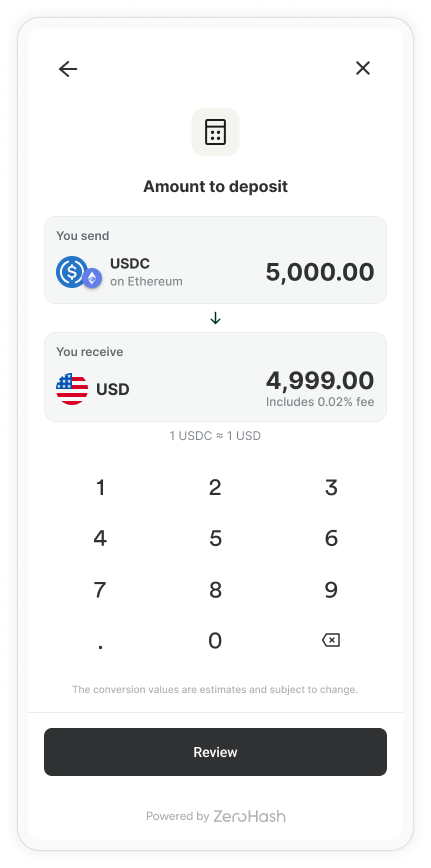

After the customer selects the asset and network, they're then given the deposit instructions (rate, fees if applicable, and the deposit address). At this point, the customer should be navigating to their mobile phone or a different tab on their browser an external wallet (ie, Coinbase, Robinhood, Metamask, Phantom, etc.) and initiating a transfer from there to the address shown on the screenshot above:

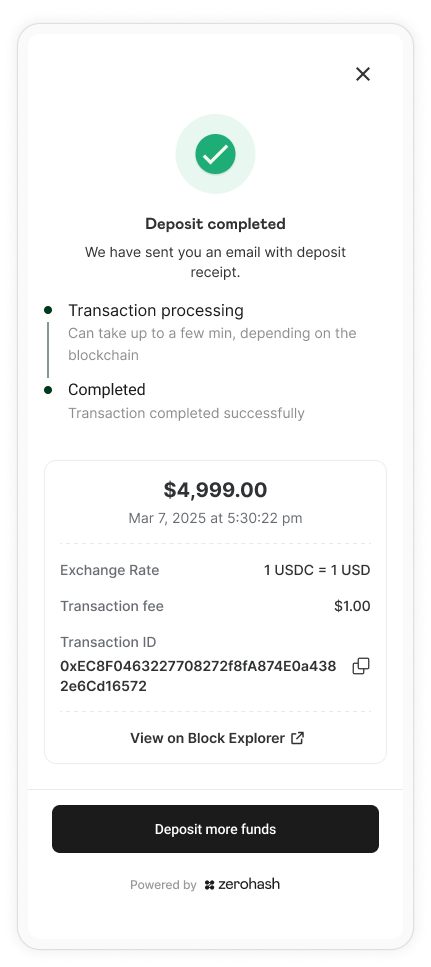

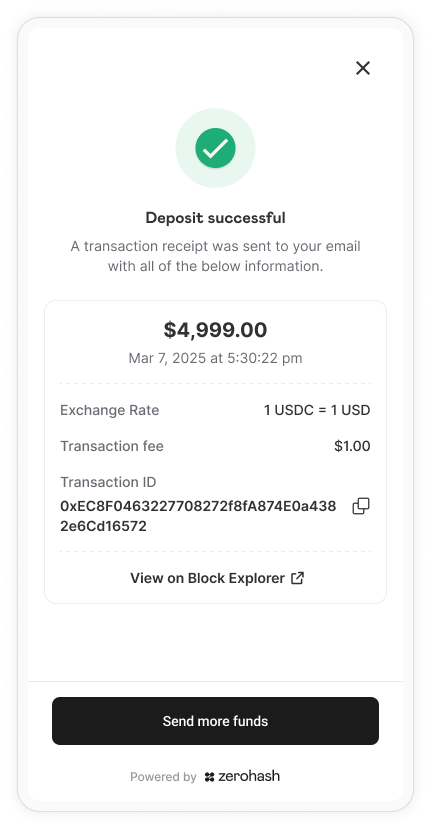

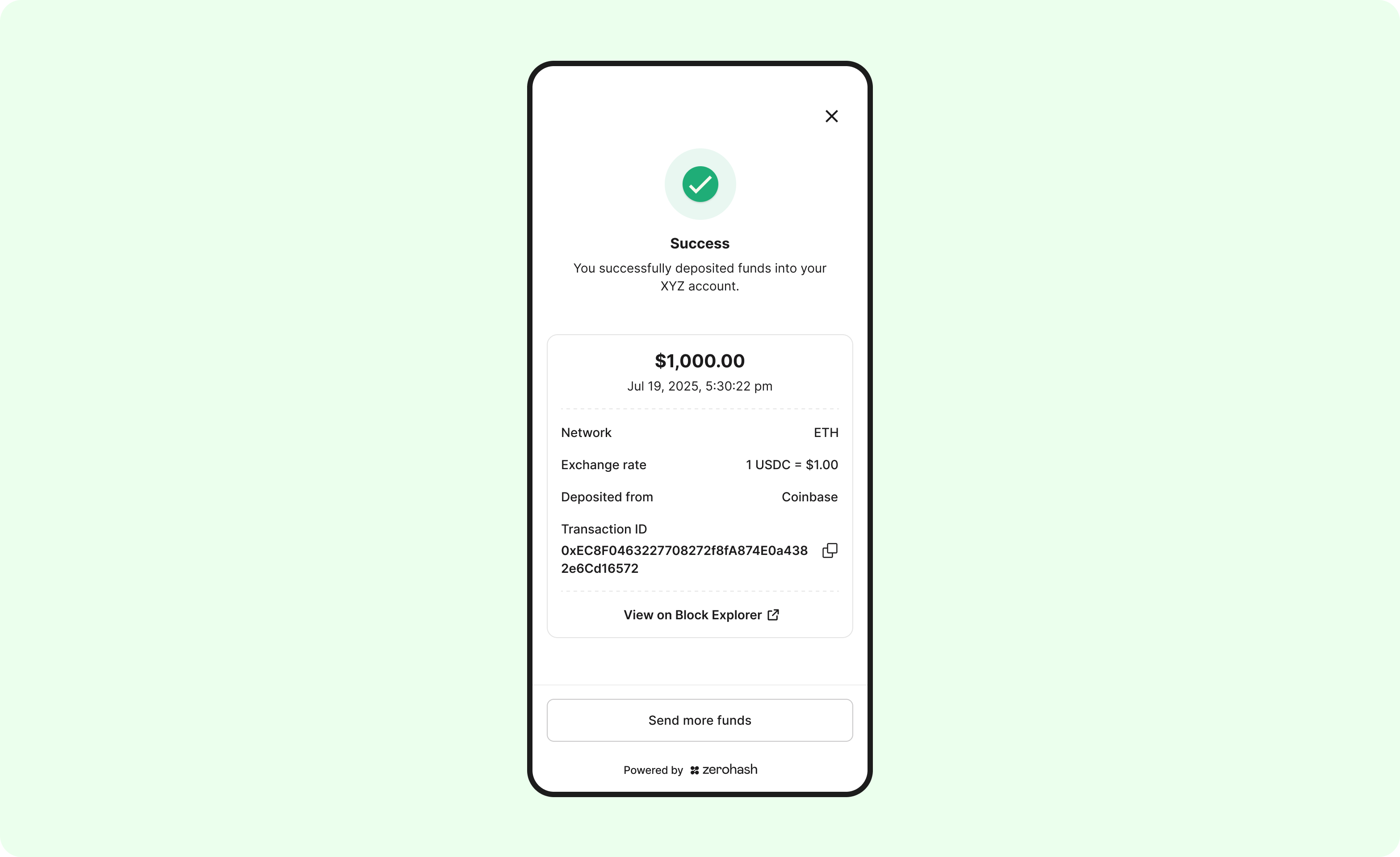

Transaction confirmed

After the blockchain transaction is confirmed on-chain, the front end will automatically transition to a confirmed state. The customer will be shown a receipt with important data points:

If the customer decides they want to deposit more, they can also move to the Deposit More Funds tab, which will show them instructions once again:

Success case - receive webhook

Upon a successful deposit and immediate and automatic conversion to fiat, the Platform will receive a webhook (link to core webhook page):

{
  "participant_code": "CUST01",
  "fund_asset": "USDC",
  "rate": "1",
  "quoted_currency": "USD",
  "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
  "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
  "quantity": "500",
  "notional": "500",
  "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
  "fund_timestamp": 1550174574,
  "transaction_id": "a07407e8f98c21b037b4aa0cbc852b8489c5e122fcc3d4b33b7827d0605ad8ff",
  "account_label": "general",
  "success": true,
  "status_reason" : ""
}

Failure cases - receive webhook

Platform not enabled

If the Platform discontinues their support for the Fund product, or otherwise no longer is configured to use the product, here is the webhook that the Platform will receive:

{
  "participant_code": "CUST01",
  "fund_asset": "USDC",
  "rate": "1",
  "quoted_currency": "USD",
  "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
  "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
  "quantity": "500",
  "notional": "0",
  "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
  "deposit_timestamp": 1550174574,
  "transaction_id": "a07407e8f98c21b037b4aa0cbc852b8489c5e122fcc3d4b33b7827d0605ad8ff",
  "account_label": "general",
  "success": false,
  "status_reason" : "Your platform is no longer configured to use this product. The deposit has not been converted to fiat and the crypto has been credited to the customer's account"
}

Customer not approved

If the Customer has transitioned to a status other than approved (which could be as a result of a routine Zero Hash Compliance review) and they make a deposit, here is the webhook that the Platform will receive:

{
  "participant_code": "CUST01",
  "fund_asset": "USDC",
  "rate": "1",
  "quoted_currency": "USD",
  "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
  "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
  "quantity": "500",
  "notional": "0",
  "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
  "deposit_timestamp": 1550174574,
  "transaction_id": "a07407e8f98c21b037b4aa0cbc852b8489c5e122fcc3d4b33b7827d0605ad8ff",
  "account_label": "general",
  "success": false,
  "status_reason" : "This participant is not in an approved state. The deposit has not been converted to fiat and the crypto has been credited to the customer's account"
}

Deposit above maximum

If a Customer deposits an amount above the maximum configured amount, here is the webhook that the Platform will receive:

{
  "participant_code": "CUST01",
  "fund_asset": "USDC",
  "rate": "1",
  "quoted_currency": "USD",
  "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
  "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
  "quantity": "300000",
  "notional": "0",
  "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
  "deposit_timestamp": 1550174574,
  "transaction_id": "a07407e8f98c21b037b4aa0cbc852b8489c5e122fcc3d4b33b7827d0605ad8ff",
  "account_label": "general",
  "success": false,
  "status_reason" : "deposit above maximum threshold. The deposit has not been converted to fiat and the crypto has been credited to the customer's account"
}

Deposit below minimum

If a Customer deposits an amount below the minimum configured amount, here is the webhook that the Platform will receive:

{
  "participant_code": "CUST01",
  "fund_asset": "USDC",
  "rate": "1",
  "quoted_currency": "USD",
  "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
  "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
  "quantity": "1",
  "notional": "0",
  "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
  "deposit_timestamp": 1550174574,
  "transaction_id": "a07407e8f98c21b037b4aa0cbc852b8489c5e122fcc3d4b33b7827d0605ad8ff",
  "account_label": "general",
  "success": false,
  "status_reason" : "deposit below minimum threshold. The deposit has not been converted to fiat and the crypto has been credited to the customer's account"
}

Asset not supported

It's possible (albeit rare) that an asset is supported by the Fund product and is later removed. Here is the webhook that the Platform will receive in this scenario:

{
  "participant_code": "CUST01",
  "fund_asset": "USDC",
  "rate": "1",
  "quoted_currency": "USD",
  "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
  "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
  "quantity": "500",
  "notional": "0",
  "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
  "deposit_timestamp": 1550174574,
  "transaction_id": "a07407e8f98c21b037b4aa0cbc852b8489c5e122fcc3d4b33b7827d0605ad8ff",
  "account_label": "general",
  "success": false,
  "status_reason" : "Asset not supported by this product. The deposit has not been converted to fiat and the crypto has been credited to the customer's account"
}

Stablecoin depegged

Historically, and rarely, stablecoins have become depegged from their reserve currency. In this event, Zero Hash will not be converting deposits into fiat. Here is the webhook that the Platform will receive in this scenario:

{
  "participant_code": "CUST01",
  "fund_asset": "USDC",
  "rate": "1",
  "quoted_currency": "USD",
  "source_address": "0x3A45a60c62EE6cD616B1C4510404Eba88116044I",
  "deposit_address": "0x3A45a60c635E6cD616B1C4510404Eba88116050C",
  "quantity": "500",
  "notional": "0",
  "fund_id": "5155f7c9-95cb-4556-ab89-c178943a7111",
  "deposit_timestamp": 1550174574,
  "transaction_id": "a07407e8f98c21b037b4aa0cbc852b8489c5e122fcc3d4b33b7827d0605ad8ff",
  "account_label": "general",
  "success": false,
  "status_reason" : "USDC conversions are currently halted. The deposit has not been converted to fiat and the crypto has been credited to the customer's account"
}

Query Fund transactions

It may be helpful (or likely required) to display crypto or stablecoin deposits in the Transaction History (or like page) on your application. You can use the GET /fund/transactions endpoint to query all completed Fund events. View the code recipe for additional assistance.

Customer receives email

Zero Hash is required to ensure that each Customer receives an email receipt for all transactions. Zero Hash will handle this and send an email in the following scenarios (same scenarios as webhooks):

  • Success
  • Failure - Platform not enabled
  • Failure - Customer not approved
  • Failure - Deposit above maximum
  • Failure - Deposit below minimum
  • Failure - Asset not supported
  • Failure - Stablecoin depegged

Platform settlement

Zero Hash will, one time per day, send a fiat settlement wire to the Platform where the amount represents the sum of all converted deposits from the prior trading session. Here is the settlement schedule:

SessionStartEndExpected Settlement Time*
MondayMonday 9:00a ESTTuesday 8:59:59a ESTTuesday EOD
TuesdayTuesday 9:00a ESTWednesday 8:59:59a ESTWednesday EOD
WednesdayWednesday 9:00a ESTThursday 8:59:59a ESTThursday EOD
ThursdayThursday 9:00a ESTFriday 8:59:59a ESTFriday EOD
FridayFriday 9:00a ESTMonday 8:59:59a ESTMonday EOD

During US holidays, Platforms should expect their settlements to arrive by EOD on the next business day. For example, for the August 30th 2024 session, the settlement will arrive by Tuesday EOD (because Monday was Labor Day)

Tracking the settlement amount

The recommended way to track the impending settlement amount is to query the GET /accounts/{account_id} endpoint. In order to retrieve the correct account_id to use in that call, use the following query parameters when hitting the GET /accounts endpoint:

  • participant_code: [your platform code]
  • account_group: [your platform code]
  • account_label: general
  • account_type: available
  • asset: [fiat currency code, typically "USD"]

Use the account_id in the response, ie af063ca6-836f-4677-8ebf-edbe1d049938, to query GET /accounts/af063ca6-836f-4677-8ebf-edbe1d049938. Example response:

{
    "message": [
        {
            "asset": "USD"
            "account_owner": "PLAT01",
            "account_type": "available",
            "account_group": "PLAT01",
            "account_label": "general",
            "balance": "25000",
            "account_id": "af063ca6-836f-4677-8ebf-edbe1d049938",
            "last_update": 1727214271011
        }
    ]
}

Note that the balance will refresh to 0 each time Zero Hash initiates the daily settlement wire.

Retroactively querying settlements in the past

Platform settlements are technically a withdrawal. In order to query settlements from the past, use the GET /withdrawals/requests endpoint. The response will show all withdrawals made from the Platform's account, or one of your Customer's (Customer withdrawals are extremely rare and reserved for edge case Fund failures only).

In order to filter for withdrawals made from the Platform account only, query GET /withdrawals/requests using the participant_code query parameter, where the value is the Platform's platform code:

Example GET /withdrawals/requests?participant_code=PLAT01 response:

{
    "message": [
        {
            "id": "152b8276-0585-45ec-bf62-85e134b3ff43",
            "withdrawal_account_id": 346030,
            "participant_code": "PLAT01",
            "account_group": "PLAT01",
            "account_label": null,
            "requestor_participant_code": "PLAT01",
            "asset": "USDC.SOL",
            "requested_amount": "25000",
            "settled_amount": "25000",
            "gas_price": null,
            "status": "SETTLED",
            "on_chain_status": "",
            "client_withdrawal_request_id": null,
            "requested_timestamp": 1727921516403,
            "transaction_id": "HND48J83HGR55LLP",
            "input_data": null,
            "fee_amount": "",
            "quoted_fee_amount": null,
            "quoted_fee_notional": null,
            "trade_id": null,
            "quoted_fee_asset": null,
            "withdrawal_fee": "",
            "parent_link_id": null,
            "parent_link_id_source": null
        }
    ]
}
